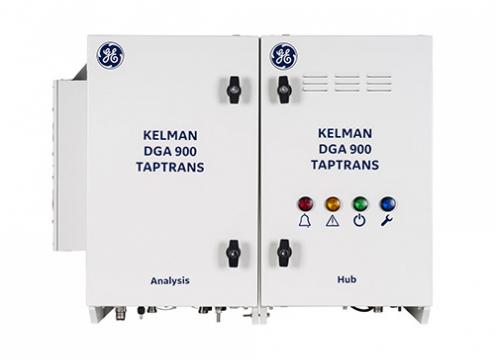

Kelman DGA 900 TAPTRANS
9 gas on-line OLTC DGA expandable with add-ons to a Transformer Monitoring System (TMS)
Knowledge of the condition of transformers is essential for all electrical networks and on-line monitoring of transformers is an increasingly vital component of successful asset management programs. The comprehensive information provided by the Kelman™ DGA 900 TAPTRANS not only allows expensive failures to be avoided but enables asset capabilities to be maximized.
Technology Frequency
- Automated head-space gas extraction
- Photo-acoustic spectroscopy (PAS) gas measurement
- Thin film capacitive moisture sensor
- Immersed fiber optic oxygen sensor
Cutting Edge DGA
- Laboratory challenging field measurement of nine gases plus moisture on 3 oil sources
- Individual oil manifolds for the main and OLTC Diverter tank
- 4th generation of GE’s PAS technology delivering improved measurement accuracy with lower detection limits
- No carrier or calibration gas consumables
- Complete analysis up to once per hour and new “Rapid Mode” for critical gases in ~30 min
OLTC Monitoring
- Supervision of a key mechanical component of the transformer
- OLTC tap position recorder
- Temperature difference between tanks
- Torque used by tap changing motor
Advantages
The Kelman DGA 900 TAPTRANS is a patented designed specifically for transformers with an On-Load Tap Changer (OLTC), which is recognised as one of the most vulnerable parts of the transformer and which accounts for a large portion of unplanned outages. It offers discrete multigas on-line DGA and moisture monitoring, separating the main and selector tanks from the diverter tank to avoid any risk of contamination. Utilizing photo-acoustic spectroscopy (PAS) measurement technology, well suited to field application, it provides laboratory challenging levels of precision and repeatability. Full 9 gas oil sampling and analysis can be performed as often as every hour on a single tank and up to once every three hours if all three possible oil tanks are connected.
Applications
While on-line DGA is now widely accepted as the most effective method of assessing the condition of a transformer,
it does not cover all the possible sources of issues. Subsystems like the tap changer, the cooling system or the
bushings can generate their own problems if they are left unmonitored.
It is most suited for monitoring large, mission critical transformers or compromised transformers with a view to
extending their life and preventing any unexpected failure. Industrial processes where an OLTC Transformer is seen as a manufacturing tool, often dependent on an uninterruptible power supply as part of the process.
Preventing unplanned outages is vital to maintain the manufacturing process output, where failure would result in costly downtime or waste. The OLTC transformer is often used within renewable power generation where varying output needs to be compensated.
Key Benefits
- Modular and retrofittable architecture using selectable standard add-on cards
- Provides extensive remote insight into transformer condition and safe operation
- Enables correlation of data for validation and in-depth fault analysis
- Graphical presentation using built-in web-page based HMI and local color screen
- Full integration with GE’s acclaimed Perception™ Fleet asset management software
- From the only vendor with 15 years PAS experience and installed base of >15,000 units
